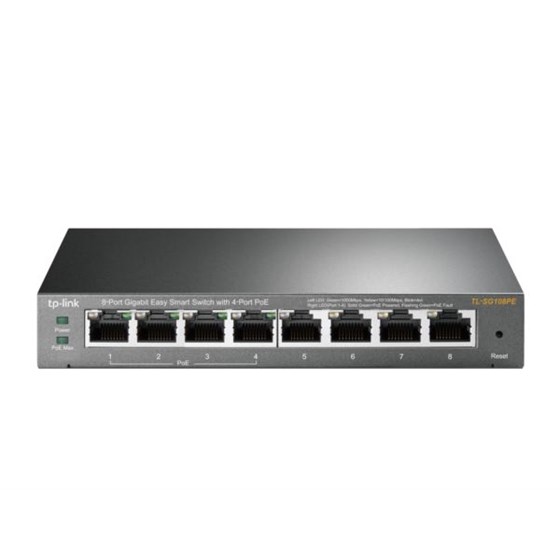

TP-Link TL-SG108PE, 8-Port Gigabit Easy Smart Switch with 4-Port PoE+

TP-Link TL-SG108PE, 8-Port Gigabit Easy Smart Switch with 4-Port PoE. 8 10 100 1000Mbps RJ45 ports. Equipped with 4x 802.3af PoE ports with up to 15.4W for each port. Supports PoE power up to 55W for all PoE ports. Web-based user interface and Easy Smart Configuration Utility simplify configuration. Fanless. External Power Adapter(Output: 48VDC 1.25A)

• Hardware features
• Standards and Protocols: IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p
• Interface: 8 10/100/1000Mbps RJ45 Ports, AUTO Negotiation/AUTO MDI/MDIX
• Fan Quantity: Fanless
• Power Supply: External Power Adapter(Output: 48VDC / 1.25A),
• PoE+ Ports(RJ45),
• PoE Ports (RJ45) Standard: 802.3 af compliant,
• PoE Ports: Port 1- Port 4,
• PoE Power Budget: 55W
• Dimensions ( W x D x H ): 6.2 × 4.0 × 1.0 in (158 × 101 × 25 mm)
• Max Power Consumption: 5.2W with no PoE device connected, 65.2W with 55W PoE devices connected
• Performance
• Switching Capacity: 16Gbps
• Packet Forwarding Rate: 11.9Mpps
• MAC Address Table: 4K
• Packet Buffer Memory: 1.5Mb
• Jumbo Frame: 15KB
• Software features
• Quality of Service: Support Port-Based/802.1p/DSCP priority, Support 4 priority queues, Rate Limit, Storm Control
• L2 Features: IGMP Snooping V1/V2/V3, Link Aggregation, Port Mirroring, Cable Diagnostics, Loop Prevention
• VLAN: Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs), MTU/Port/Tag VLAN
• Management: Web-based GUI, Easy Smart Configuration Utility
• Transmission Method: Store-And-Forward
