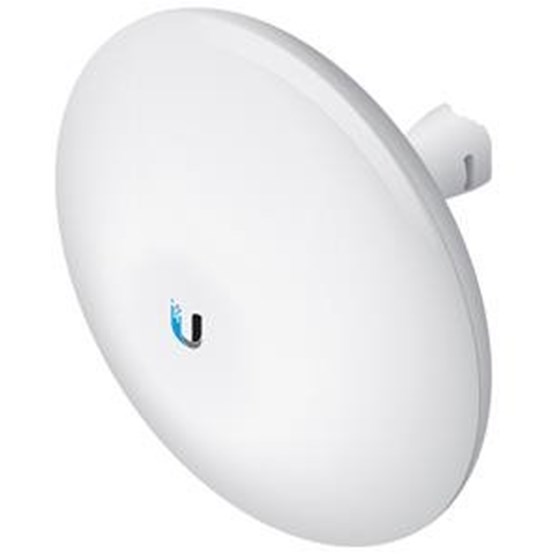

Ubiquiti NanoBeam ac Gen2 CPE, 5GHz, 19dBi (NBE-5AC-Gen2)

• NBE-5AC-Gen2 is airMAX® ac CPE with Dedicated Management Radio. • The radio and antenna are combined to create a more efficient and compact CPE. The NanoBeam 5AC Gen 2 gets maximum gain out of the smallest footprint. Providing high performance and an innovative form factor, the NanoBeam 5AC Gen 2 is versatile and cost-effective to deploy.

• Technical parameters:
• Wireless frequency:5 GHz
• WiFi standards:airMAX ac
• Transmission speed - 5GHz [Mb/s]:866
• Tx power 5GHz [dBm]:25
• Security:WPA2 AES
• 5GHz MIMO:2 x 2
• Type of antenna:Built-in
• Internal antennas:2
• Antenna gain [dBi]:19
• Connectors and Interfaces
• LAN speed:(2) 10/100/1000Mbps
• Gigabit LAN:Yes
• Other features:WiFi management radio
• Power
• Power over Ethernet:24V DC
• PoE type:PoE-Out + PoE-In
• Max. power consumption [W]:8,5
• Physical characteristics
• Purpose:Outdoor
• Buttons:Reset
• Operating temperature [°C]:-40 up to 80
• Weight [g]:530
• Width [mm]:189
• Height [mm]:189
• Depth [mm]:125
• Hardware
• CPU:Atheros MIPS 74KC
• CPU frequency [MHz]:720
• RAM [MB]:128
• Software
• Operating mode:Client, Repeater, AP Router, Access Point, Client Router (wisp)
• IPv6 support:Yes
• Default IP address:192.168.1.20
• Default login and password:ubnt / ubnt
