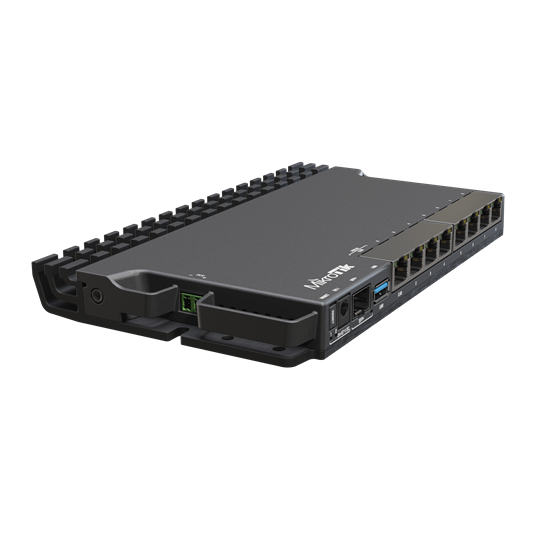

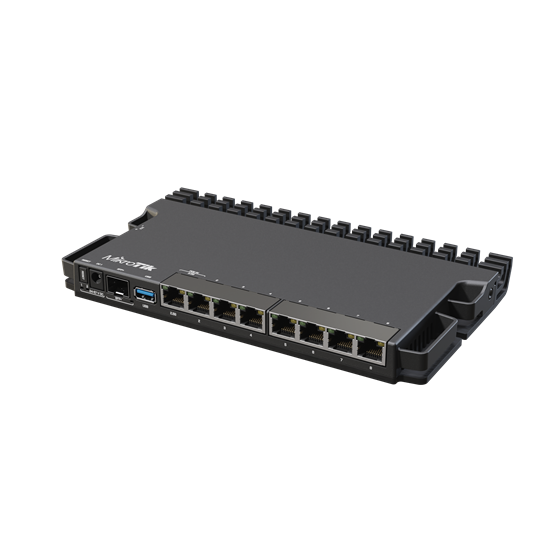

Mikrotik RB5009UG+S+IN, Router heavy-duty, 1GB DDR4 RAM, 1GB NAND, 1×2.5 G-LAN, 7× G-LAN, 1×SFP+, RouterOS L5

• The ultimate heavy-duty home lab router with USB 3.0, 1G and 2.5G Ethernet and a 10G SFP+ cage. You can mount four of these new routers in a single 1U rackmount space! Unprecedented processing power in such a small form factor. • Double the usual performance: we took your feedback from the MikroTik User Meetings to create the perfect home lab router: compact, powerful, with multiple powering options and efficient cooling.RB5009 has it all, and even more! • The board features 9 wired ports and a full-sized USB 3.0. Seven of the ports are Gigabit Ethernet, another one is 2.5 Gigabit Ethernet, and the last one is a 10G SFP+ cage. All the ports are connected to a powerful Marvell Amethyst family switch-chip with a 10 Gbps full-duplex line leading to the Marvell Armada Quad-core ARMv8 1.4 GHz CPU. Both CPU and the switch-chip are located on the bottom of the board – so the case acts as a massive heat-sink!

•Connectors and Interfaces
• Multiple WAN:Yes
• LAN speed: 7×10/100/1000Mbps + 1×100M/1G/2.5G
• Optical interfaces:(1) 1/10Gbps
• USB:Yes
•Power
• Power over Ethernet:802.3af, 802.3at, 24 .. 57V DC
• Power type:PoE, DC connector, DC terminal
• PoE type:PoE-In (only)
• Max. power consumption [W]:14
• Power via connector/terminal:24 .. 57V DC
•Physical characteristics
• Design:Desktop
• Fans:Without fan
• Chassis design:Metal
• Dimension: WxHxD: 220x22x125 mm
•Hardware
• CPU:88F7040 / 1400MHz / cores 4
• Internal storage [MB]:1024
• RAM [MB]:1024
•Software
• Operating system:RouterOS - L5
• IPv6 support:Yes
• Default IP address:192.168.88.1
• Default login and password:admin / -
