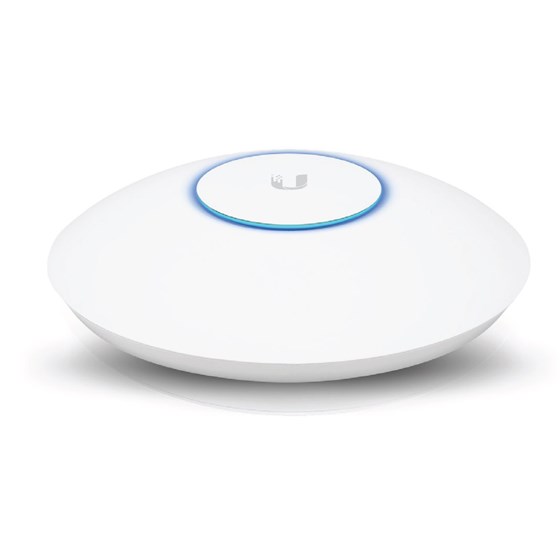

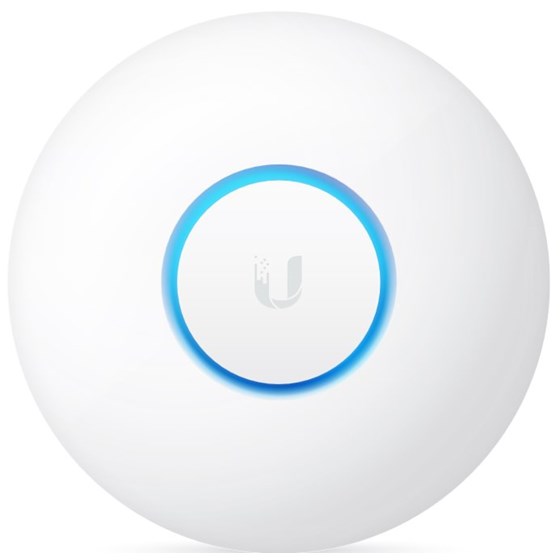

Ubiquiti UAP-nanoHD Access Point

• Ubiquiti UAP-nanoHD is 802.11ac UAP device. It is 2x2 MIMO in 2.4GHz band, 4x4 MU-MIMO in 5GHz band Acess point with modulation speed up to 300 + 1733 supporting 802.11/a/b/g/n/ac/ac-wave2. • This UAP is designed for example offices, hotels, warehouses and thanks to high performance is suitable for places with high quantity of connected devices. • UAP-nanoHD has two dual-band antenas with 3dBi gain and two antennas dedicated for 5GHz band. • It full supports roaming for transmission of associated clients between APs. • Device features 1x Gbit LAN supporting 48V DC POE (passive and active 802.3af).

•Wireless features
• Wireless frequency:2.4 + 5 GHz (dual band)
• WiFi standards:802.11ac, 802.11ac - wave2, 802.11n, 802.11a, 802.11b/g
• MU-MIMO:Yes
• Transmission speed - 5GHz [Mb/s]:1733
• Transmission speed - 2.4GHz [Mb/s]:300
• Security:WEP, WPA, WPA2
• 2.4GHz MIMO:2 x 2
• 5GHz MIMO:4 x 4
• Type of antenna:Built-in
• Internal antennas:4
• Roaming:Yes
• Antenna gain [dBi]:3

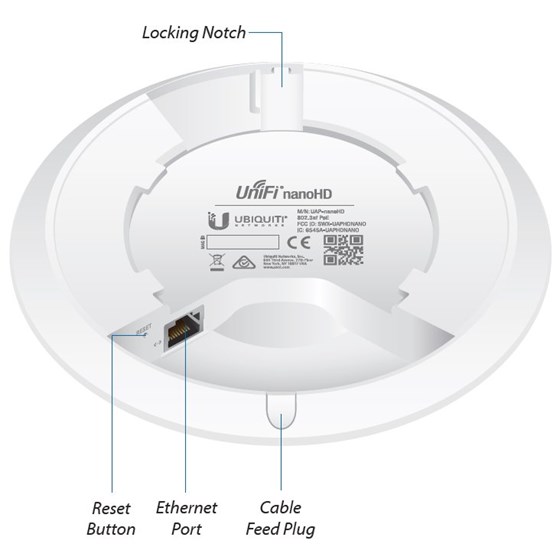

•Connectors and Interfaces
• LAN speed: 1×10/100/1000Mbps
•Power
• Power over Ethernet:802.3af, 48V DC
• PoE type:PoE-In (only)
• Max. power consumption [W]:10,5
•Physical characteristics
• Indoor case
• Buttons:Reset
• Operating temperature [°C]:-10 up to 70
• Weight [g]:300
• Dimension: Width [mm]:160/Height [mm]:33/Depth [mm]:160
•Software
• Operating mode:Access Point
• IPv6 support:Transparent (bridge mode)
• Default IP address:Dynamic from DHCP
• Default login and password:ubnt / ubnt
